GPSMAP 9013XSV
Sale Only a few left
GARMIN

GPSMAP 9013XSV

CHART THE WAY TO YOUR PARADISE

5 499 €4 499 €incl. VAT

In stock — only 2 left

2 in stock

Buy now
  • Venipak delivery in 1–3 business days
  • Collect at our showroom in Vilnius
  • 14-day returns for unused goods
  • Advice and installation in our own service centre

SKU: 010-03176-02

GARMIN

Top-of-the-range helm display

Designed for motorboats and yachts where several systems run at the helm at once: navigation, autopilot, radar, cameras and audio. It suits serious fishing with powerful sonar, sailing with wind and polar data, and everyday leisure cruising.

3840 x 2160 pixels
Display resolution
+
Displays sonar
Yes (two 1 kW)
Traditional sonar (dual-frequency / dual-beam)
2.4 GHz & 5 GHz
“wi-fi” frequency bands
GARMIN · ON SCREEN

Scroll — and the screen changes with you.

Each function of this model, shown on the display itself.

TOP-QUALITY CHARTPLOTTER HIGH-RESOLUTION SONAR “GARMIN BLUENET” NETWORK ENTERTAINMENT OPTIONS
1 / 4
  1. 01

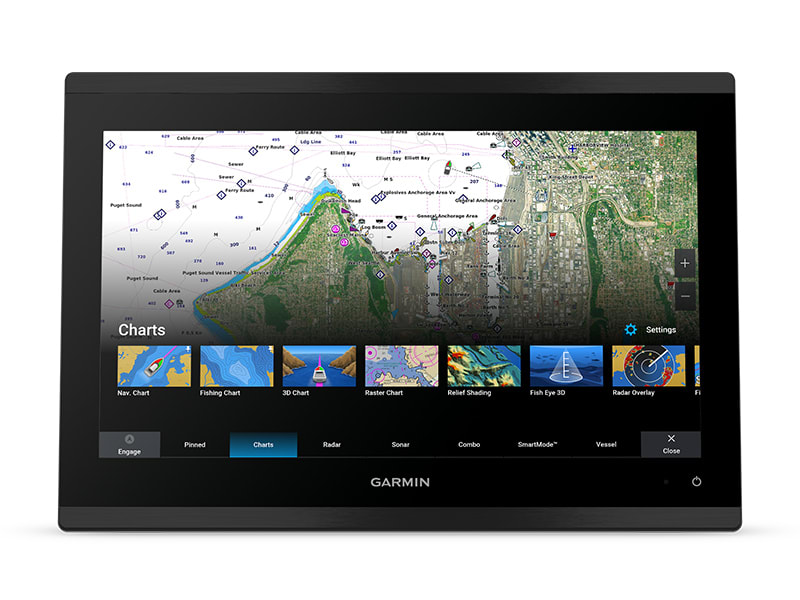

    TOP-QUALITY CHARTPLOTTER

    A luxurious, sunlight-readable 4K IPS display, seamlessly integrated in a modern way across the entire helm glass.

  2. 02

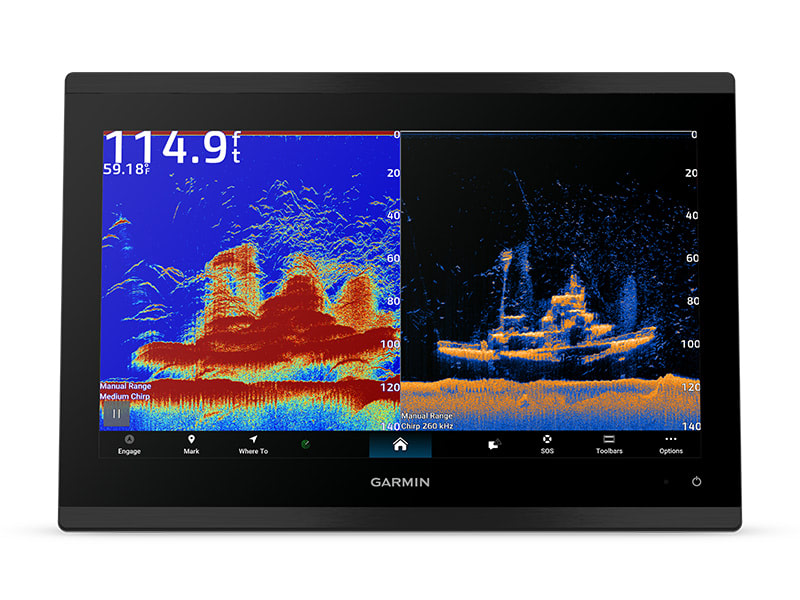

    HIGH-RESOLUTION SONAR

    See fish in stunningly high resolution with the built-in 1 kW xCHIRP and “Garmin RapidReturn™” sonar. Excellent target separation ensures a clear view of fish.

  3. 03

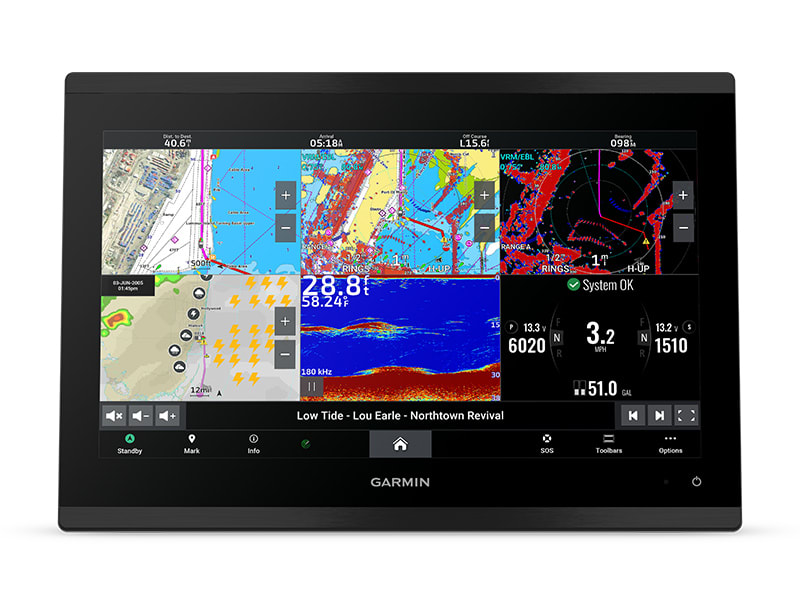

    “GARMIN BLUENET” NETWORK

    Build an extended network of multiple chartplotters, cameras, radars and sonars, and enjoy gigabit-speed networking.

  4. 04

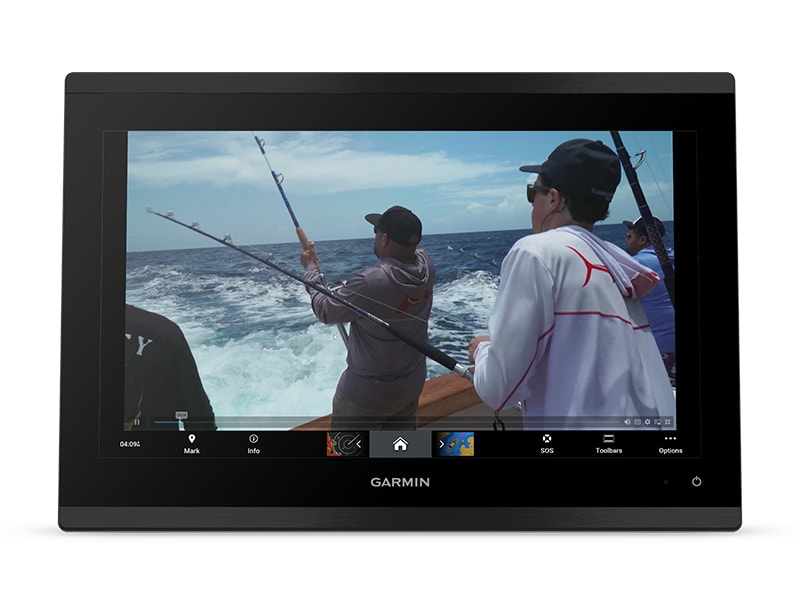

    ENTERTAINMENT OPTIONS

    Enjoy audio and video integration that lets you see and hear the same video across all networked displays and speakers.

WHAT IT IS FOR

Who this model suits best.

01

For fishing

Support for powerful sonar and live-scanning imagery on a large, high-resolution screen.

02

For sailing

Wind data, polars and course lines help you hold the most efficient course.

03

For leisure boating

The autopilot, radar, cameras and audio system are controlled from a single helm.

DESCRIPTION

VIEW CHARTS, ENJOY ENTERTAINMENT AND DO MUCH MORE IN UP TO 4K RESOLUTION “GARMIN BLUENET™” NETWORK DELIVERS UP TO SEVEN TIMES MORE PROCESSING POWER AND GIGABIT SPEEDS This is a chartplotter with an integrated 4K touchscreen display, designed for captains and anglers who accept nothing less than the highest quality. Enjoy the luxury of a clear view at the helm, premium design and materials, as well as our best integrated sonar. PREMIUM 4K RESOLUTION IN-PLANE SWITCHING (IPS) SUNLIGHT-READABLE TOUCHSCREEN DISPLAY

SPECIFICATIONS

All the numbers in one place.

ManufacturerGarmin
Weight4.13 kg
ANT® (Connectivity)+
Power output1 kW
Water resistance ratingIPX7
BeiDou+
BlueChart g3+
BlueChart g3 Vision+
Sailing features+
Compatible with GRID 20+
Display resolution3840 x 2160 pixels
Display type4K, IPS; “Mini LED” (local dimming) backlight
Physical dimensions33.5 cm x 23.4 cm x 9.1 cm (13.2″ x 9.19″ x 3.56″)
GLONASS+
GPS+
Galileo+
Accepts data cards2 “microSD™” cards (on the back of the product)
Garmin Navionics Vision+™+
Garmin Navionics+™+
Garmin Quickdraw Contours+
Audio output+
Receiver10 Hz
Built-in receiver+
J1939 ports1
Waypoints5000
LakeVü g3+
LakeVü g3 Ultra+
POWER SUPPLYFrom 10 to 32 V DC
Max. power consumption at 10 V DC63 W
Max. current draw at 12 V DC5.4 A
Routes100
Mounting optionsBail, flat or flush mount
NMEA 0183 output (Tx) ports1
NMEA 2000® ports1
NMEA 0183 input ports1
Supports AIS (tracks target ships' position)+
Supports WAAS+
Supports built-in “RapidReturn”Yes (up to 2x)
Supports built-in xCHIRP+
Supports voice commands+
Keyed assist buttonsTouchscreen
Raster chart support+
Displays sonar+
Display size29.4 cm x 16.5 cm x 33.7 cm diagonal (11.57″ x 6.50″ x 13.27″ diagonal)
Calling via “Bluetooth ® ”+
Standard maps+
Track points50000
NMEA 2000 ® compatible+
NMEA 0183 compatible+
Compatible with wireless remote control+
“ActiveCaptain” compatibleYes
TOPO 100K+
Spoken audio alerts+
“Garmin BlueNet” network ports2
Typical current draw at 12 V DC4.7 A
Tracks50 saved tracks
USB portsYes (1x USB-C)
Video output ports1 HDMI
Video input ports1 (BNC composite); 1 HDMI (HDCP compatible)
Traditional sonar (dual-frequency / dual-beam)Yes (two 1 kW)
“clearvü”+
“garmin wi-fi®” network (local connectivity)+
“gcv™ black box” sonar support+
“livescope”+
“onehelm™” support+
“panoptix™” sonar+
“sidevü”+
“wi-fi” frequency bands2.4 GHz & 5 GHz
