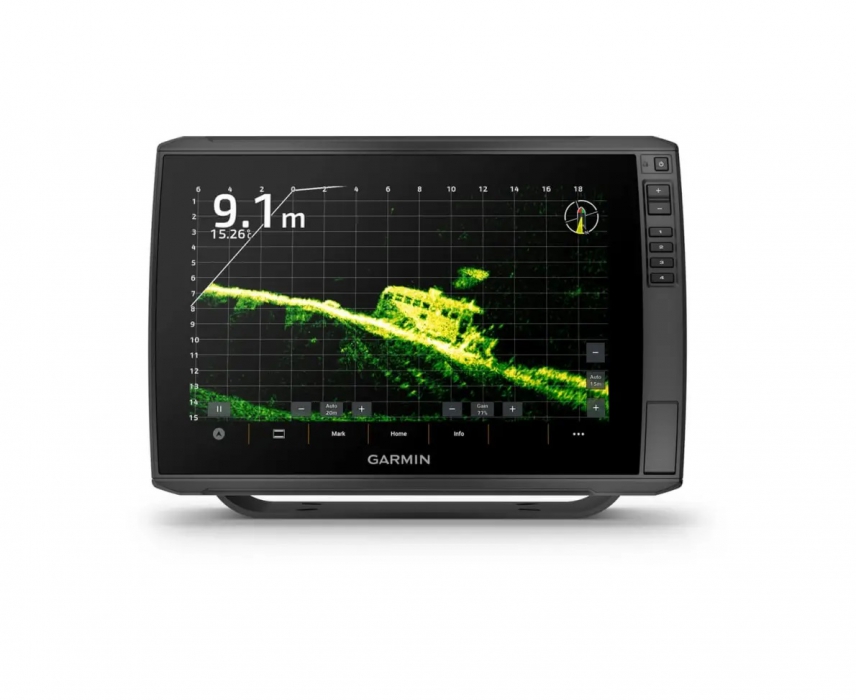

ECHOMAP Ultra 2 122SV With GT56UHD-TM Transducer
Sale Only a few left
GARMIN

ECHOMAP Ultra 2 122SV With GT56UHD-TM Transducer

Garmin ECHOMAP Ultra 2 122sv fishfinder with GT56UHD-TM, 010-02881-01 – product…

2 990 €2 299 €incl. VAT

In stock — only 1 left

1 in stock

Buy now
  • Venipak delivery in 1–3 business days
  • Collect at our showroom in Vilnius
  • 14-day returns for unused goods
  • Advice and installation in our own service centre

SKU: 010-02881-01

GARMIN

Navigation and sonar in one

A chartplotter with built-in sonar suits fishing, trips on your favourite waters and everyday boating. An angler sees the bottom and fish, while a motorboat owner sees the chart, route and depth near the shore and in the marina.

+
TOUCHSCREEN
1280 x 800 pixels
DISPLAY RESOLUTION
WXGA, IPS
DISPLAY TYPE
+
DISPLAYS SONAR
GARMIN · ON SCREEN

Scroll — and the screen changes with you.

Each function of this model, shown on the display itself.

“LIVESCOPE™” SONAR SUPPORT INTEGRATED UHD SONAR VIVID COLOUR PALETTES
1 / 3
  1. 01

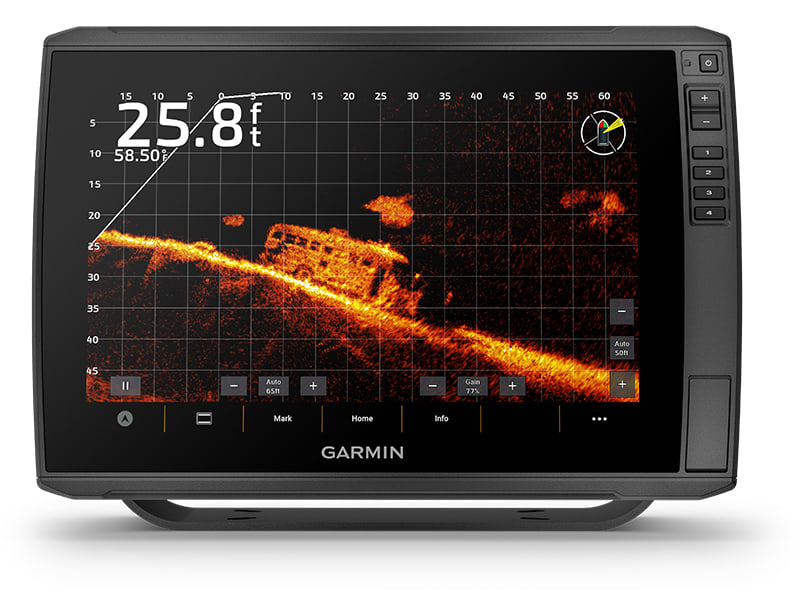

    “LIVESCOPE™” SONAR SUPPORT

    The “ECHOMAP Ultra 2” series supports the full range of “LiveScope” live-scanning sonar products (transducers sold separately).

  2. 02

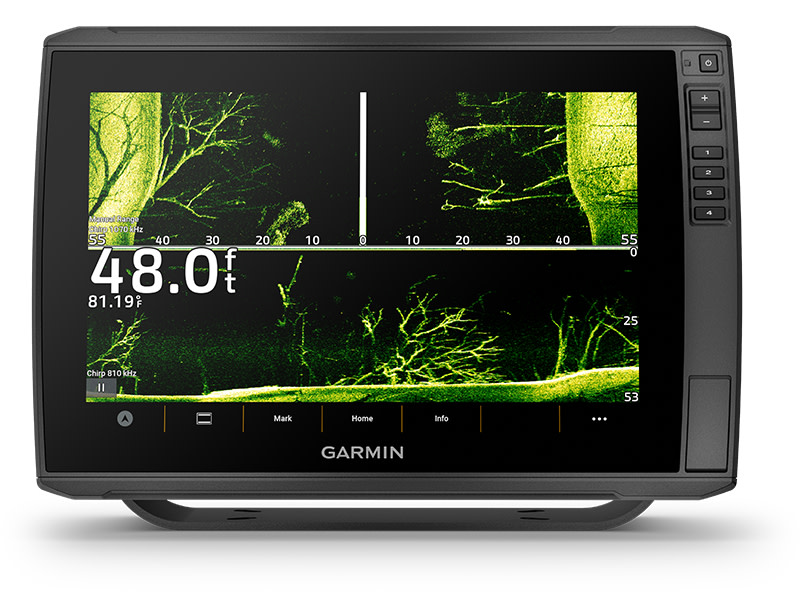

    INTEGRATED UHD SONAR

    Certain models come with the GT56 transducer, which provides “Garmin” CHIRP traditional sonar and ultra-high-definition “ClearVü™” and “SideVü™” scanning sonars for capturing near-photographic images of what lies underwater.

  3. 03

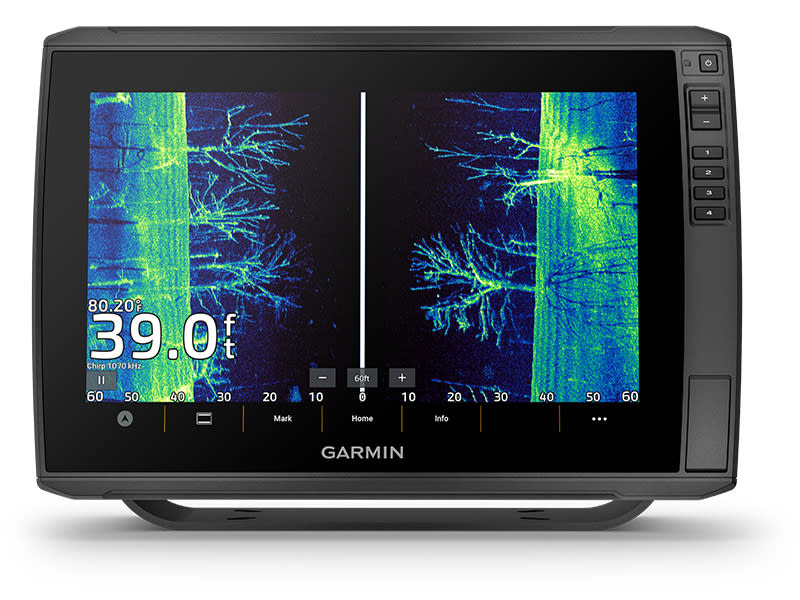

    VIVID COLOUR PALETTES

    Contrasting, vivid scanning sonar colour palettes help you distinguish objects and structure more easily than ever.

WHAT IT IS FOR

Who this model suits best.

01

For fishing

The integrated sonar shows the bottom, structure and fish; you can draw contours yourself.

02

For sailing

Charts, routes and depth alarms for safe boating in familiar and new waters.

03

For leisure boating

A clear chart, waypoints and depth near the shore — when all that matters is getting there and back safely.

DESCRIPTION

The large, bright, sunlight-readable touchscreens of the Garmin ECHOMAP Ultra 2 122sv with GT56UHD-TM fishfinders give these versatile chartplotters a wealth of fishing capabilities. They support Garmin Navionics+ ™ and Garmin Navionics Vision+ ™ charts, and the transducer bundles add ultra-high-definition scanning sonars and traditional CHIRP sonar. The ECHOMAP Ultra 2 series supports the full range of LiveScope live-scanning sonar products (transducers sold separately). Certain models come with the GT56 transducer, which provides “Garmin” CHIRP traditional sonar and ultra-high-definition “ClearVü ™” and “SideVü ™” scanning sonars, so you can capture almost photographic images of what lies underwater.

SPECIFICATIONS

All the numbers in one place.

ManufacturerGarmin
Weight2.5 kg (5.5 lb)
12-pin transducer ports12-pin scanning sonar
ANT+ ™ (CONNECTIVITY)+
POWER OUTPUT600 W
WATER RESISTANCE RATINGIPX7
BEIDOU+
BLUECHART G3+
BLUECHART G3 VISION+
SAILING FEATURES+
DISPLAY RESOLUTION1280 x 800 pixels
DISPLAY TYPEWXGA, IPS
PHYSICAL DIMENSIONS34.1 x 22.9 x 9.8 cm (13.4″ x 9″ x 3.9″)
GALILEO+
ACCEPTS DATA CARDS2 “microSD” cards
GARMIN NAVIONICS VISION+ ™+
GARMIN NAVIONICS+ ™+
GARMIN QUICKDRAW CONTOURS+
GLONASS+
GPS+
RECEIVER10 Hz
BUILT-IN RECEIVER+
TOUCHSCREEN+
WAYPOINTS5000
POWER INPUTFrom 9 to 18 Vdc
MAX. POWER CONSUMPTION AT 10 V DC36 W
MAX. CURRENT DRAW AT 12 V DC5 A
ROUTES100
MOUNTING OPTIONSBail or flush mount
NMEA 2000 ® PORTS1
SUPPORTS AIS (TRACKS TARGET SHIPS' POSITION)+
SUPPORTS WAAS+
Panoptix sonar+
KEYED ASSIST BUTTONSTouchscreen with buttons
DISPLAYS SONAR+
DISPLAY SIZE26.1 x 16.3 cm; 30.7 cm diagonal (10.3″ x 6.4″; 12.1″ diagonal)
STANDARD MAPS+
TRACK POINTS50.000
NMEA 2000 ® COMPATIBLE+
“ACTIVECAPTAIN” COMPATIBLEYes
TYPICAL CURRENT DRAW AT 12 V DC2.5 A
TOPO 100K+
TRACKS50 saved tracks
TRADITIONAL SONAR (DUAL-FREQUENCY / DUAL-BEAM)Built-in (single-channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
“clearvü”Built-in 260/455/800/1 000/1 200 kHz
Garmin Marine Network ports2 (large connector)
“garmin wi-fi ® ” network (local connectivity)+
“livescope”+
“sidevü”Built-in 260/455/800/1 000/1 200 kHz
