PIRANHAMAX 4 DI

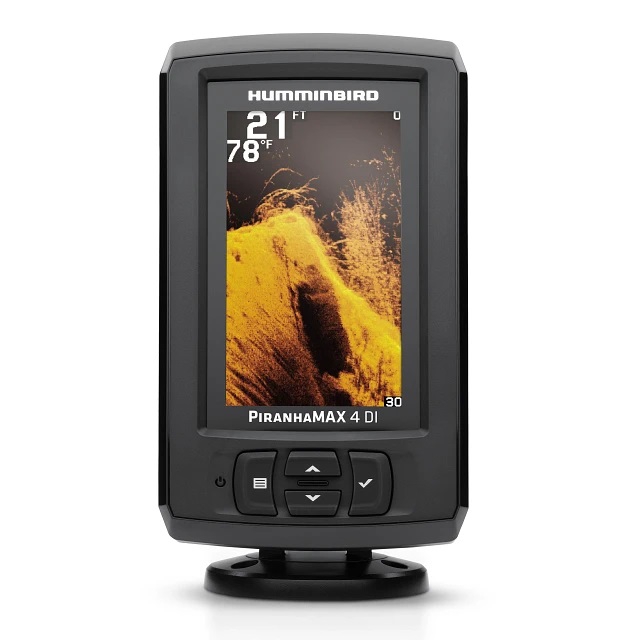

Sharper image. Sharper teeth. With modern styling and a larger 4.3" color LCD, the PiranhaMAX™ 4 DI will give you a fresh perspective on what's below your boat. Thanks to a redesigned, even easier-to-use interface, the power of Down Imaging®, Fish ID+™, fish alarms, depth alarms and zoom has never been simpler. Feature for feature, it packs a technological chomp that no fish finder in its class can match.
- Dual Beam Sonar: Choose from a narrow and a wide beam for great detail or a generous coverage area, helping you identify fish, structure and contours.
- Down Imaging: Get a clear view of what's happening below your boat with Down Imaging. As you patrol the water, you'll watch timber, brush, bridge pilings, rocks and any other structure pop with great detail.
- Tilt and Swivel Mount: Quickly adjust your viewing area angle.
- 1-Year Limited Warranty
- Includes: PiranhaMAX 4 fish finder, Tilt and Swivel Mount , XNT 9 DI T transom-mount transducer
Techninė specifikacija
| Model | PiranhaMAX 4 DI |
| Product Code | 410160-1 |
| Series | PiranhaMAX |
| UPC | 82324048739 |
| Display Size - Diagonal | 4.3 in |
| Display Pixel Matrix | 272H x 480V |
| Transducer Included | XNT 9 DI T |
| Features | Down Imaging |
| Memory Card Slot | None |
| Sonar-Standard | Dual Beam, Down Imaging |
| Sonar-Coverage | 28°, 16°, & 74° @ -10dB |
| Sonar-Frequencies Supported | 200/455/455 kHz |
| Depth-Sonar | 600 ft (20) 200 kHz, 320 ft (20) 455 kHz |
| Depth-Down Imaging | 320 ft |
| Interface | Keypad Control |
| Power Draw | 180 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 2400 Watts |
| Power Output RMS | 300 Watts |
| Screen Snap Shot | Not Supported |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 3.91 in W x 7.34 in H x 3.62 in D |
| Mount-Optional | In-Dash Mounting Kit |
| Mount-Optional Size | 3.91 in W x 5.875 in H x 2.5 in D |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Not Supported |
| GPS Receiver | Not Supported |
| GPS Trackplotting | Not Supported |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Not Supported |
| LakeMaster Compatibility | No |
| Platinum Compatibility | No |
| Target Separation | 2.5 in |
| Upgradable Software | No |
| Display Colors Grayscale | 256 Color |
| Display Type | Color TFT |
| Speed | Not Supported |
| Temperature | Built In |
| Warranty | One-Year Warranty |
