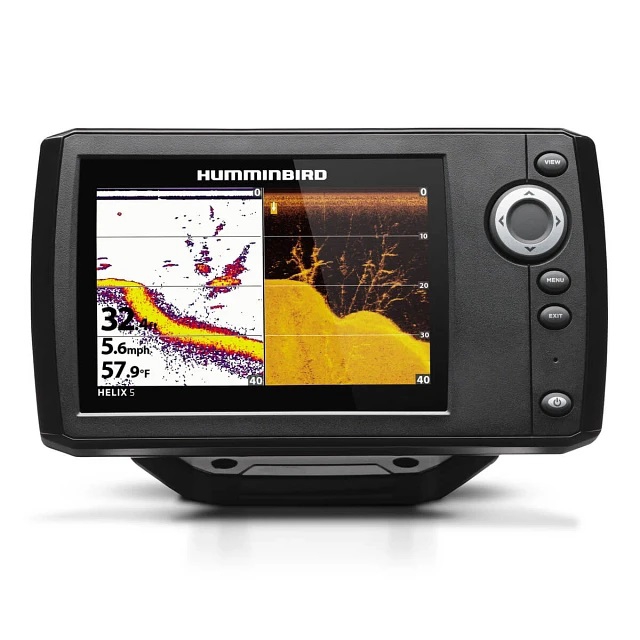

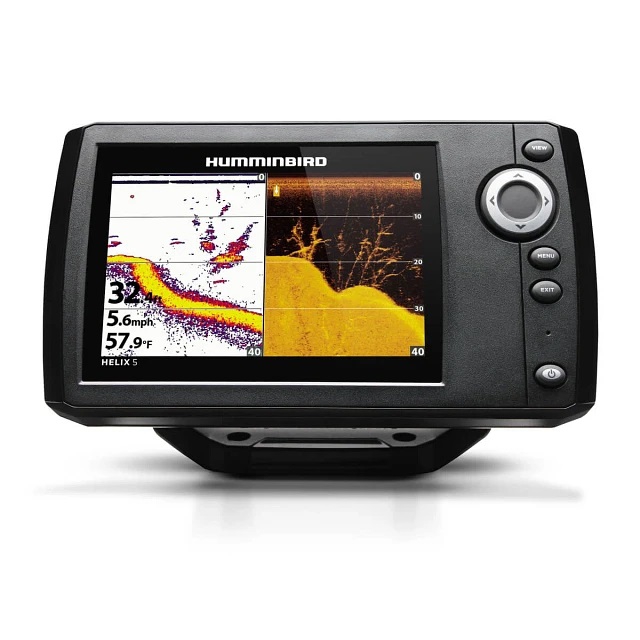

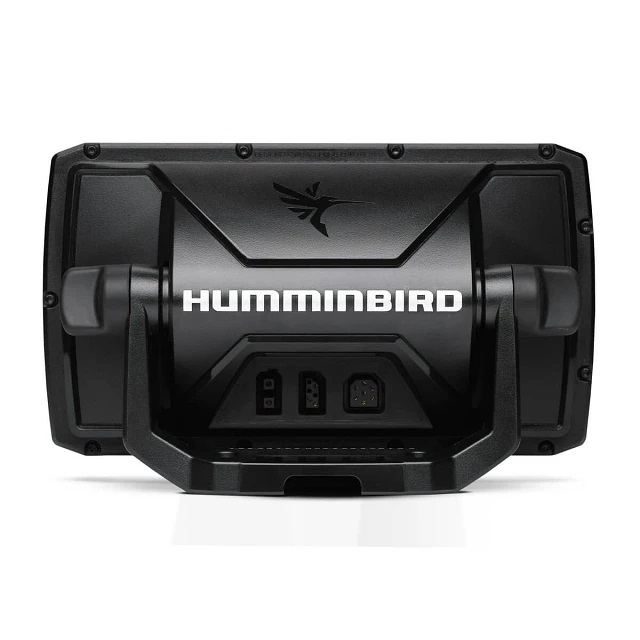

HELIX 5 DI G2

If fishing is in your DNA, there's no such thing as "too early" or "too far." High expectations go with the territory. The HELIX® 5 Series answers the call with an uncompromising, 5" widescreen display. This HELIX 5 DI G2 model features Down Imaging, DualBeam PLUS and SwitchFire.

  • Down Imaging: Get a clear view of what's happening below your boat with Down Imaging. As you patrol the water, you'll watch timber, brush, bridge pilings, rocks and any other structure pop with great detail.

  • SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.

  • Dual Beam PLUS Sonar: Two beams combine for great detail and a generous coverage area, helping you identify fish, structure and contours. Use the narrow beam for high-accuracy returns of fish, structure, detail and the bottom profile. Opt for the wide beam when you want a larger search area. You can view the beams separately, side-by-side or blended together for the complete picture. Your coverage area will be equal to your depth.

  • 1-Year Limited Warranty


Techninė specifikacija


Model HELIX 5 DI G2
Product Code 410200-1
Series HELIX
UPC 82324049019
Display Size - Diagonal 5 in
Display Pixel Matrix 800H x 480V
Transducer Included XNT 9 DI T
Compatible With AIS, AutoPilot
Features Down Imaging
Memory Card Slot None
Sonar-Standard Down Imaging, DualBeam PLUS
Sonar-Coverage 16°, 28°, 45° & 75° @ -10dB
Sonar-Frequencies Supported 200/455/800 kHz
Depth-Sonar 600 ft (standard transducer)
Depth-Down Imaging 350 ft
Interface Keypad Control
Power Draw 615 mA
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 4000 Watts
Power Output RMS 500 Watts
Screen Snap Shot Not Supported
Sonar Recording Not Supported

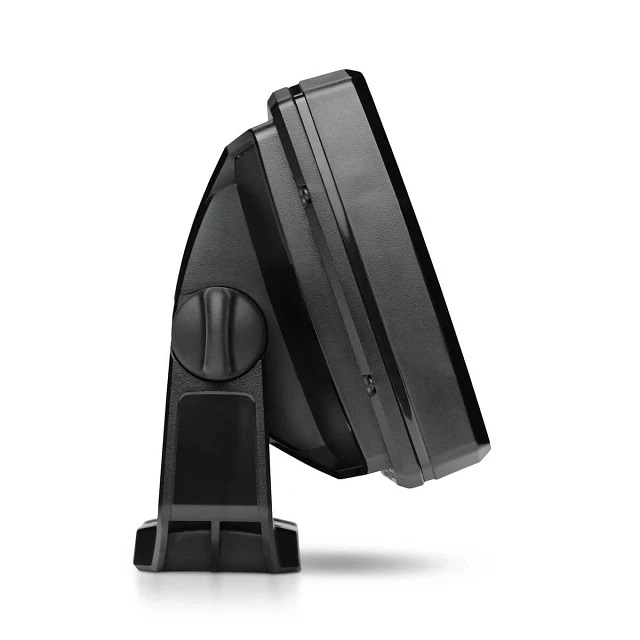

Mount-Standard Gimbal
Mount-Standard Size 7.55 in W x 4.64 in H x 3.3 in D
Mount-Optional In-Dash Mounting Kit
Mount-Optional Size 7.55 in W x 4.28 in H x 1.13 in D
Transducer Mount Location Transom
GPS Chartplotting Not Supported
GPS Receiver Optional
GPS Trackplotting Not Supported
360 Imaging Compatibility No
MEGA Live Compatibility No
Humminbird Basemap Not Supported
LakeMaster Compatibility No
CoastMaster Compatibility No
Navionics Gold/HotMaps Compatibility No
Navionics Platinum+ Compatibility No
Platinum Compatibility No
Minn Kota i-Pilot Link Compatibility No
Minn Kota Talon Shallow Water Anchor Compatibility No
Radar Compatibility No
5-Port Ethernet Switch Compatibility No
AIS Compatibility Not Supported
Autopilot Compatibility No
Heading Sensor GPS Compatibility No
NMEA2000 Not Supported
Target Separation 2.5 in
Upgradable Software Yes
View Preset Keys No
X-Press Menu System Yes
Custom Digital Readout Yes
Custom View Selections Yes
Display Colors Grayscale 16-Bit
Display Type Color TFT
Speed Optional
Temperature Built In
Temperature Alarm Yes
Temperature Graph No
HDMI Compatible No
