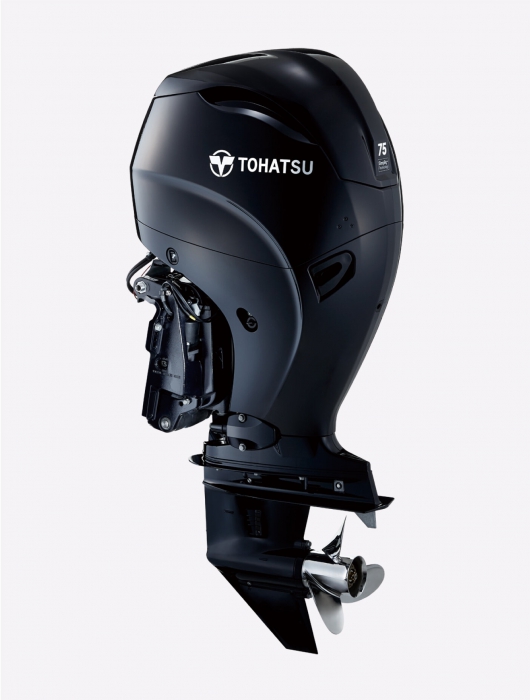

Tohatsu MFS75AEUTL
The MFS75 design is built on our best-selling models the MFS40/50/60 and the MFS9.9/15/20. The legacy of our top performing and most reliable engines has been passed on, with a dynamic design and sophisticated details, to our all new MFS75 4-stroke outboard with industry-first innovative feature and characteristics.
The groundbreaking industry-first technology, 4-2-1 Performance Tuned Exhaust, provides incomparable torque throughout the RPM range. The higher torque you have the better hole shot, which translates to faster speeds. Higher torque also means less drag, which in turn means more boating options; it could be applied to any type of boat. From light to heavy, pleasure or commercial boats.
The synergy between the 4-2-1 Performance Tuned Exhaust and our fine-tuned ECU programming, MFS75 provides a strong acceleration when needed in order to get the boat on plane quicker and allowing you to reach the top end speed faster.
Equipped with standard features such as Variable Idle System allowing you to change the idle speed from 650 to 850 RPMs, a low gear ratio (2.08:1) giving you the increased low end torque your boat needs, a fresh-water Flushing System designed to make routine flushing easier, and a High Output 41 amp Alternator, the MFS75 provides the industry leading features you expect from Tohatsu.
ohatsu 75 hp 4-Stroke Benefits
- Dynamic design with sophisticated details Click Here
- Exhilarating boating performance
- Superior durability & optimized weight
- Outstanding fuel economy from unique SOHC-4V design
- Performance-inspired engine sound and the most quiet at idle
- Fine-tuned ECU Programming
- Available in long (20”) shaft lengths
High Performance and Easy Operation
- 4-2-1 Performance Tuned Exhaust generates high torque to get you on plane quicker
- Fine-tuned ECU provides the strong acceleration when needed
- Electronic Fuel Injection
- MicroComputer Programmed ignition system for quicker starts
- High output 41 amp alternator
- New and improved gear case with wider splash plate and anti-ventilation plate
- Adjustable steering friction and trim tab for reducing steering effort
- Power Trim and Tilt
Fundamentals for User Convenience and Reliability
- Sheet Molding Compound (SMC) cowlings for durability
- Anodized major aluminum components for greater corrosion resistance
- Oil catch tray underneath the oil filter for cleaner oil filter changes
- Easily accessible and removable fuel filter allows simple and quick water draining
- More than 16 sacrificial anodes strategically placed throughout all major components
- Through the prop exhaust for a quieter operation
- Built-in freshwater flushing system for easy routine flushing
- Variable idling speed control from 650 to 850 RPMs at 5-steps
- A camshaft-driven trochoid oil pump ensures long-term durability of critical engine components
- Stainless steel water pump housing liner for outstanding durability
Warning & Protection
- Low oil pressure warning (visual and audible)
- Overheat warning (audible)
- Start-in-gear protection for safer engine starting
- Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
- Over-rev. limiter
FEATURES
4-2-1 Performance Tuned Exhaust
Isometric aggregated exhaust manifold "4-2-1 Performance Tuned Exhaust" maximizes torque and acceleration performance. This unique design is an industry-first and can only be found on Tohatsu Outboards. By engineering each exhaust passage to be equal in length, the merging of exhaust of each cylinder creates extra suction that helps pull the exhaust from the engine. This completely eliminates the possibility of exhaust interference and drastically improves the performance.
Movie available here
Outstanding Torque
From 4-2-1 Performance Tuned Exhaust, MFS75/90/100/115 have the highest torque that gets you on plane quicker and reach the top end speed faster than any other competitors.
**Data based on research done and collected by Tohatsu Engineering Department
Superior Durability & Optimized Weight
For high durability and weight reduction purposes, Tohatsu optimized each relatively heavy component such as cylinder head, exhaust manifold, engine base, oil pan, lower unit etc.. Also, special anodized process has been utilized on all major aluminum components for prolonged engine life.
Excellent Fuel Efficiency
MFS75/90/100/115 have a unique SOHC-4V design in its class where competitors are either SOHC-2V or DOHC-4V. Spark plugs are strategically placed in the center of the each combustion chamber for the most efficient combustion with optimal heat conduction which results in strong running and fuel efficiency.
Techninė specifikacija
| Engine | 4 Cylinder |
|---|---|
| Output | 75 ps (55.2 kw) |
| Displacement | 1995 cc (121.6 cu.in.) |
| Bore x Stroke | 84 x 90 mm (3.31 x 3.54 in) |
| Starting | Electric |
| Control Type | Remote Control or Tiller Handle |
| Gear Shift | Forward - Neutral - Reverse |
| Gear Ratio | 2.08:1 |
| Ignition System | MicroComputer Programmed |
| Transom Height | 20", 25" |
| Fuel | Unleaded Gasoline (87 Octane) or higher |
| Oil Type | NMMA Certified FC-W® 4-stroke oil** |
| Oil Capacity | 4.2 L (1.11 gal.) w/filter |
| Weight* | 178 kg (392 lbs.) |
| Alternator Output | 12V, 492W, 41A |
| Max. RPM Range | 5,150 - 5,850 |
| Electronic Fuel Injection | Standard |
| Start In Gear Protection | Standard |
| Thermostat Controlled Cooling System | Standard |
| Through-The-Prop Exhaust | Standard |
| Overheat Buzzer | Standard |
| Power Trim and Tilt | Standard |
| Oil Pressure Warning | Standard |
| Variable Idle Speed | Standard |
Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
