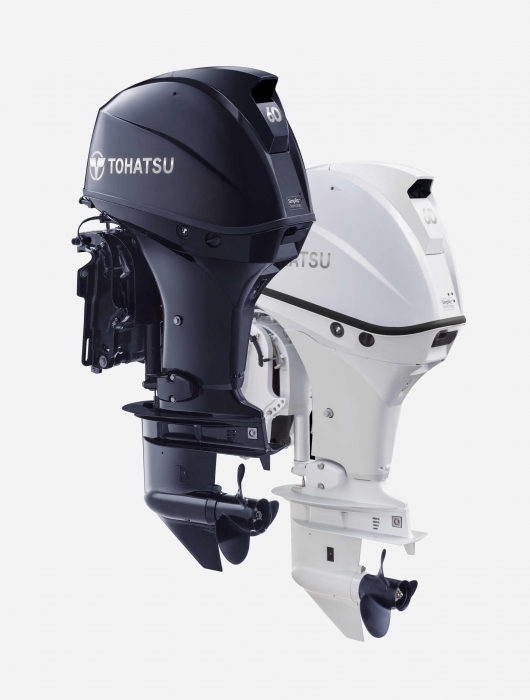

Tohatsu MFS60AWETL
With a sleek look, the new MFS60A 4-stroke outboard has been created with new technologies and characteristics. By using proven technology such as; electronic fuel injection (EFI), dual intake valves, anodized pistons and a modified roller rocker arm, your time on the water will be equipped with smoother and faster acceleration.
Tohatsu is determined to provide an engine to back you up on all your activities. Armed to deliver a powerful ride, the 60hp EFI four stroke not only offers accelerating speed while using less fuel, but provides the lightest weight in its class to muscle your boat applications without sacrificing performance.
Equipped with standard features such as variable idle speed allowing you to change the idle speed from 650 to 950 rpm’s, a low gear ratio giving you the increased low end torque your boat needs, a freshwater flushing system designed to make routine flushing easier, and a high output 21 amp alternator, the MFS60 provides the industry leading features you expect from Tohatsu.
Tohatsu 60 hp 4-Stroke Benefits
- Sleek design with monochrome tilt handle
- SOHC with unique 9-Valve Design
- Outstanding fuel economy
- Lightest weight in its class, just 98.5 kg.
- Available in long (20”) shaft lengths
High Performance and Easy Operation
- Electronic Fuel Injection
- Digital CD ignition system for quicker starts
- High output 21 amp alternator
- New and improved gear case with lower gear ratio for increased low end torque
- Adjustable steering friction and trim tab for reducing steering effort
- Power trim & tilt
Fundamentals for User Convenience and Reliability
- Through the prop exhaust for a quieter ride
- Built-in freshwater flushing system for easy routine flushing
- Variable idling speed control from 650 to 950 rpm’s
- A camshaft-driven trochoid oil pump ensures long-term durability of critical engine components
- Stainless steel water pump housing liner for outstanding durability
Warning & Protection
- Low oil pressure warning (visual and audible)
- Overheat warning (visual and audible)
- Battery voltage warning (visual only)
- Start-in-gear protection for safer engine starting
- Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
- Over-rev. limiter
FEATURES
SOHC 9-Valve and Roller Rocker Arms
SOHC with unique 9-Valve Design with roller rocker arms provide minimal friction offering quicker throttle response more durable against wear and tear.
Multi-Function Tiller Handle is available on select models.
The multi-function tiller handle features an ergonomically designed shift lever for easy and convenient shifting as well as a longer throttle grip with 110 degrees rotation for easier maneuverability. All controls on the new multi-function tiller are conveniently located on the handle for easy access and control. More specifically, the gear shift, throttle control, trim switch, safety lanyard cord, TLDI® warning lights, and electric start key switch are all integrated in the tiller handle.
Variable Idling System
allows trolling speed (RPM) to be adjusted in four levels from 650rpm to 950rpm (100rpm each) using the key-switch.
Built-in freshwater flushing system
Standard built-in freshwater flushing system simplifies routine engine flushing.
Audio Visual Warning System
The tachometer informs the operator of potential problems such as low oil pressure, low battery, and overheat, through the built-in warning lights. (For models equipped with a tachometer)
Techninė specifikacija
| Engine | 3 Cylinder |
|---|---|
| Output | 60 ps (44.1 kw) |
| Displacement | 866 cc (52.9 cu.in.) |
| Bore x Stroke | 70 x 75 mm (2.76 x 2.95 in) |
| Starting | Electric |
| Control Type | Remote Control or Tiller Handle |
| Gear Shift | Forward - Neutral - Reverse |
| Gear Ratio | 2.08:1 |
| Transom Height | 20" |
| Fuel | Unleaded Gasoline (87 Octane) or higher |
| Oil Type | NMMA Certified FC-W® 4-stroke oil** |
| Weight* | 98.5 kg (217 lbs.) |
| Alternator Output | 12V, 252W, 21A |
| Max. RPM Range | 5,000 - 6,000 |
| Digital ECU Controlled Ignition System | Standard |
| Electronic Fuel Injection | Standard |
| Start In Gear Protection | Standard |
| Thermostat Controlled Cooling System | Standard |
| Through-The-Prop Exhaust | Standard |
| Overheat Buzzer | Standard |
| Power Trim and Tilt | Standard |
| Oil Pressure Warning | Standard |
