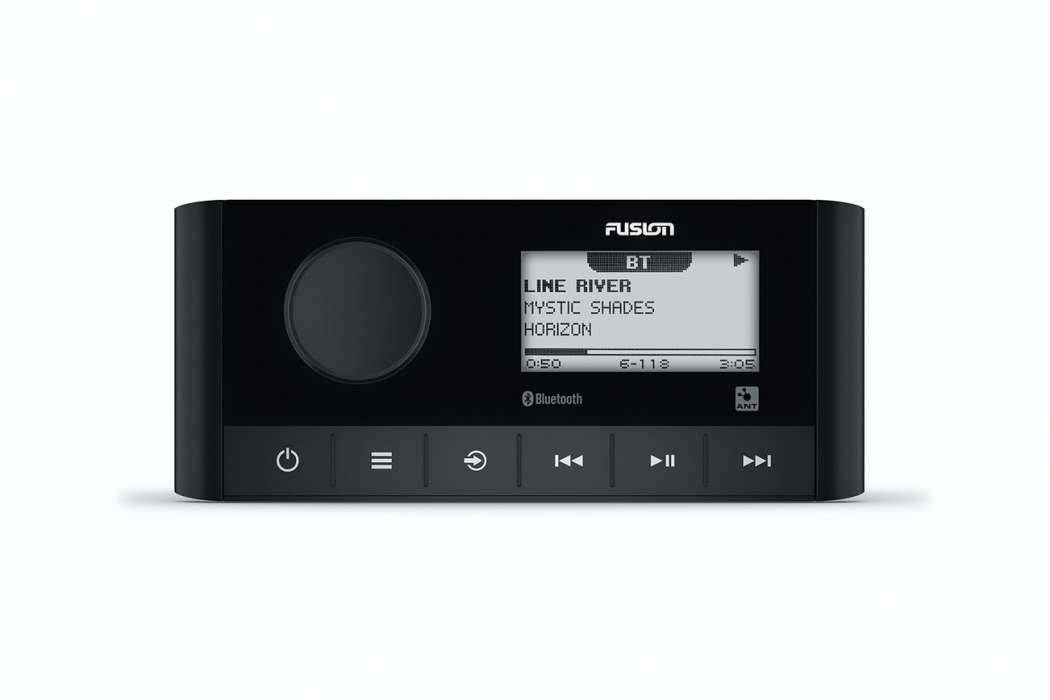

MS-RA60 Marine Stereo with Wireless Connectivity
Modern, compact and the most economical marine stereo from Fusion yet
Sources: AM / FM / Bluetooth / AUX / DAB+
Techninė specifikacija
| Physical Dimensions (WxHxD) | 6.18” x 2.68” x 4.06” (156.9 x 68 x 103.2 mm) |
|---|---|
| Weight | 11.1 oz (316 g) |
| Water Rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power Input | 10.8-16 VDC |
| Operating Temperature Range | 32° to 122° F (0° to 50° C) |
| Current (Max.) | 15 A |
| BLUETOOTH® Wireless Range | Up to 30 ft (10 m) |
| ANT® Wireless Range | Up to 10 ft (3 m) |
| Wireless Frequencies/Protocols | BLUETOOTH 2.4 GHz @ +12 dBm nominal / ANT 2.4 GHz @ +7 dBm nominal |
| Compass-Safe Distance | 5.9” (150 mm) |
| Display | 2.3” perimeter bonded monochrome dot matrix LCD |
| Built-In Amplifier | Class-D (minimum 4 ohm impedance) |
| Peak Power | 180 W |
| Rated Power Output (4 ohm) | 22 W rms x 4 @ 14.4 V input, 4 ohm, 10% THD |
| Fusion-Link Control | Yes (with compatible Apple® and Android devices) |
| Fusion-Link Lite Control | Yes (with compatible Garmin watch) |
| Multi-Zone Technology | 2 zones |
| BLUETOOTH Wireless Technology | Yes |
| ANT Wireless Technology | Yes |
| DAB+ | Yes (DAB tuner built-in) |
| Multi-Language Interface | Dutch / English / French / German / Italian / Spanish |
| Software Updates | Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app |
| Warranty | 1 year |
| Sources | AM / FM / BLUETOOTH / AUX x1 / DAB+ (available in Europe and Australia only) |
| Auxiliary Input | One RCA input (AUX) |
| AM / FM Radio | One Motorola antenna connector port |
| Speaker | 4 x speaker connections (2 amplified zones) |
| RCA Pre-Out (Left, Right and Subwoofer) | 1 zone (requires external amplification) |
| Line Out | Zone 1: L + R (requires external amplification) |
| Subwoofer Out | Zone 1 (requires external amplification) |
