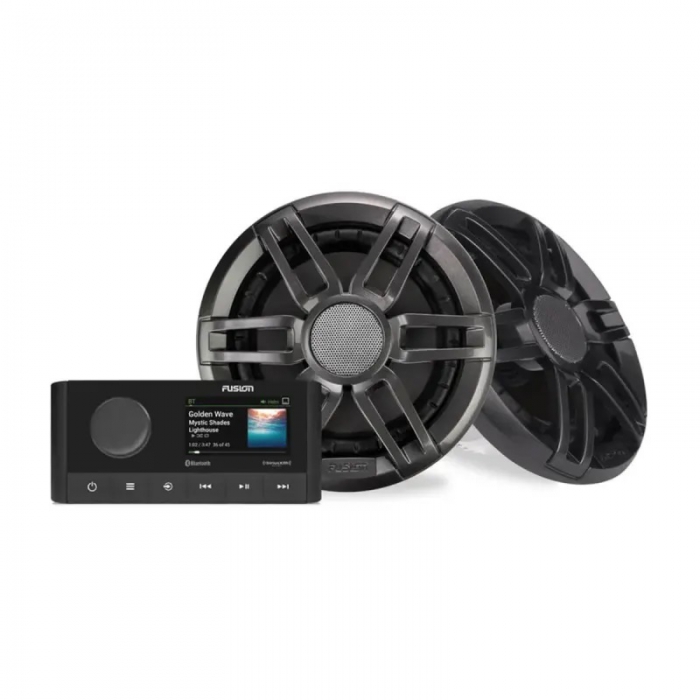

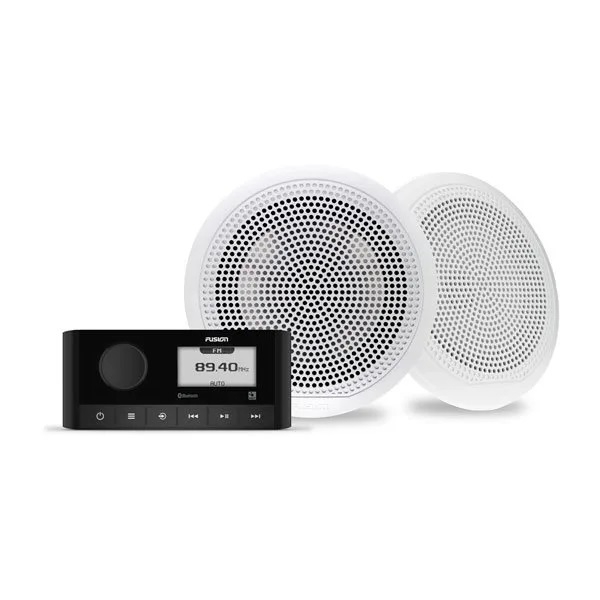

Fusion Stereo and Speaker Kits MS-RA210
Techninė specifikacija
Stereo Specifications |
|
|
Physical dimensions (HxWxD) |
MS-RA60: 2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm) MS-RA210: 2.68" x 6.18" x 4.99" (68 x 157 x 126.6 mm) |
| Weight | MS-RA60: 11.1 oz (316 g) MS-RA210: 12.4 oz (350 g) |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Current (max.) | 15 A |
| NMEA 2000® LEN | MS-RA210: 1 (50 mA) |
| BLUETOOTH® wireless range | Up to 30 ft (10 meters) |
| ANT wireless range | Up to 10 ft (3 meters) |
| Wireless frequencies/protocols | BLUETOOTH 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal |
| Compass-safe distance | 5.9" (150 mm) |
| Display | MS-RA60: 2.3" perimeter bonded monochrome dot matrix LCD MS-RA210: 2.7" optically bonded color LCD |
| Built-in amplifier | Class-D (minimum 4 ohm impedance) |
| Peak power | MS-RA210: 200 W MS-RA60: 180 W |
| Rated power output (4 ohm) | MS-RA60: 22 W rms x 4 @ 14.4 V input < 10% THD MS-RA210: 26 W rms x 4 @ 14.4 V input < 10% THD |
| Built-in Digital Signal Processing | MS-RA210: yes (with preconfigured DSP profiles) |
| Fusion-Link™ control | MS-RA60: yes (with smartphone and Garmin watch) MS-RA210: yes (with MFD, smartphone and Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| BLUETOOTH wireless technology | yes |
| ANT wireless technology | yes |
| SiriusXM-ready | MS-RA210: yes (requires SiriusXM Connect vehicle tuner) |
| DAB+ ready | MS-RA60: yes (DAB tuner built in) MS-RA210: yes (requires DAB100A antenna module) |
| NRX remote compatibility | MS-RA210: yes |
| Multi-language interface | MS-RA60: Dutch, English, French, German, Italian, Spanish MS-RA210: Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech Danish, Dutch, English, Finnish, French, German, Greek Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish |
| Software updates | MS-RA60: Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app MS-RA210: USB |
| Sources | MS-RA60: AM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia only) MS-RA210: AM/FM/BLUETOOTH/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner)/DAB+ ready (available in Europe and Australia only) |
| Auxiliary input | One RCA input (AUX) |
| NMEA 2000 | MS-RA210: 1 port |
| USB 2.0 | MS-RA210: 1 port |
| SiriusXM satellite radio | MS-RA210: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather) |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | MS-RA60: 4 speaker connections (2 zone amplified) MS-RA210: 4 speaker connections (2 zone amplified) |
| RCA pre-out (left, right and subwoofer) | MS-RA60: 1 zone (requires external amplification) MS-RA210: 2 zones (requires external amplification) |
| Line out | MS-RA60: Zone 1 (L + R, requires external amplification) MS-RA210: Zone 1, Zone 2 (1 x L + R, requires external amplification) |
| Subwoofer out | MS-RA60: Zone 1 (requires external amplification) MS-RA210: Zone 1, Zone 2 (requires external amplification) |
Speaker Specifications |
|
| Physical dimensions (Diameter x Depth) | EL Classic Speaker: 6.93" x 2.26" (176 x 57.5 mm) EL Sports Speaker: 6.93” x 2.32” (176 x 59 mm) XS Classic Speaker: 6.97" x 3.19" (177 x 81 mm) XS Sports Speaker: 6.97" x 3.27" (177 x 83 mm) |
| Water rating | IP65 |
| Configuration | EL Speaker: Full range XS Speaker: Coaxial |
| Speaker size | 6.5" |
| Peak power (watts) | EL Speaker: 80 W XS Speaker: 200 W |
| RMS Power (watts) | EL Speaker: 20 W XS Speaker: 50 W |
| Sensitivity (1 watt/1 meter) | EL Speaker: 88 dB XS Speaker: 91 dB |
| Frequency response | EL Speaker: 45 Hz-16 kHz XS Speaker: 80 Hz-18 kHz |
| Nominal impedance | 4 ohm |
| Recommended amplifier power (RMS) | EL Speaker: 20-40 W/Ch XS Speaker: 20-150 W/Ch |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | EL Speaker: 0.79" XS Speaker: 1.18" |
| Cone material | Polypropylene cone with cloth surround |
| Tweeter type | XS Speaker: Aluminum dome |
| Compass-safe distance | EL Speaker: 100" (254 cm) XS Speaker: 122" (310 cm) |
| Warranty | EL Speaker: 1 year XS Speaker: 3 years |
| Mounting diameter clearance | EL Speaker: 5.12" (130 mm) XS Speaker: 5.31" (135 mm) |
| Mounting depth clearance | EL Speaker: 1.69" (43 mm) XS Speaker: 2.64" (67 mm) |
| Sealed enclosure volume | XS Speaker: 0.28 cubic ft (8 L) |
