Fusion® Signature Series Marine Amplifiers 4 Channel



EXPERIENCE THE POWER OF MUSIC

Purpose-built for the marine environment, the Signature Series marine amplifiers feature some of the most impressive protection from the environment available — delivering a Signature performance out on the water.

Class-D amplifier design delivers higher efficiency and greater output.

Connect up to two speakers per channel at 2 ohms, or bridge two channels at 4 ohms for increased power.

Conformal coated PCBs provide extra protection from the marine elements.

Rigid aluminum alloy heat sink is molded for greater dissipation of heat.

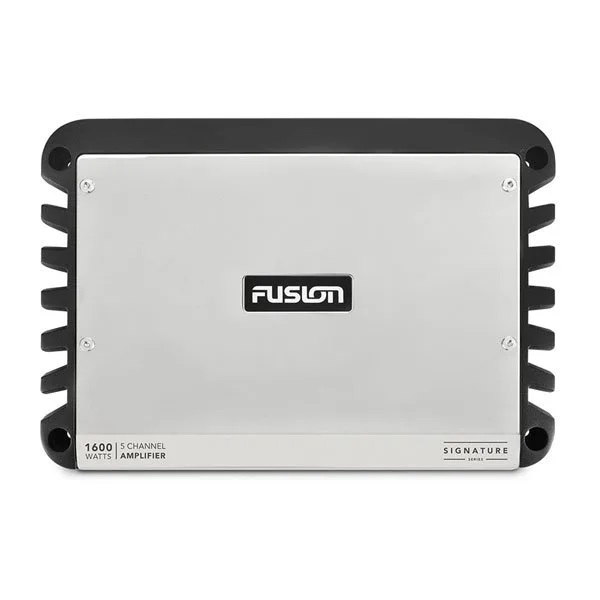

The amplifiers are available in monoblock, 4 channel, 5 channel, 6 channel and 8 channel configurations.

Engineered to last season after season, the amplifiers include a supported 3-year warranty.



DESIGNED AND ENGINEERED TO TRUE-MARINE STANDARDS

Built on the True-Marine design philosophy from Fusion, the Signature Series amplifiers have been tested to a high level of protection against salt fog, temperature, vibration and UV.

CLASS-D AMPLIFIER TECHNOLOGY

The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for a whole new level of audio performance.

SUPERIOR SYSTEM PERFORMANCE

The Signature Series amplifiers feature built-in variable bass boost, a subsonic filter and variable low/high pass crossover filters for superior performance and enhanced system protection.



MARINE-READY DESIGN WITH CONFORMAL COATED PCBS

Helping to extend the life of your amplifiers, the Signature Series amplifiers are designed with conformal coated PCBs to provide extra protection from the marine elements.

RIGID ALUMINUM ALLOY HEAT SINK

For increased efficiency, the rigid aluminum alloy heat sink is molded to form a singular die-cast chassis. The fin layout is calculated with precision to increase the surface area of the heat sink and improve heat dissipation.






1,400-WATT 4-CHANNEL AMPLIFIER

The Signature Series 1,400-watt 4-channel amplifier can power up to a maximum of four pairs of speakers or two pairs of speakers and one subwoofer.



Techninė specifikacija


General

Physical dimensions (LxWxH) Monoblock/ and 4/5 channels: 11.81" x 8.27" x 1.97" (300 x 210 x 50 mm)
6/8 channels and 24-Volt 6 channel: 16.54" x 8.27" x 2.24" (420 x 210 x 57 mm)
Amplifier class D
Peak power (Watts) Monoblock: 2250 W
4 channel: 1400 W
5 channel: 1600 W
6 channel/24-Volt 6 channel: 1500 W
8 channel: 2000 W
Total rated power output - 4 Ohm (Watts) Monoblock: 500 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD
4 channel: 150 W RMS x 4 @ 14.4 V input - 4 Ohm < 1% THD
5 channel: 80 W RMS x 4 + 250 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD
6 channel: 100 W RMS x 6 @ 14.4 V input - 4 Ohm < 1% THD
8 channel: 100 W RMS x 8 @ 14.4 V input - 4 Ohm < 1% THD
24-Volt 6 channel: 100 W RMS x 6 @ 28.8 V input - 4 Ohm < 1% THD
Total rated power output - 2 Ohm (Watts) Monoblock: 850 W RMS x 1 @ 14.4 V input - 2 Ohm < 1% THD
4 channel: 220 W RMS x 4 @ 14.4 V input - 2 Ohm < 1% THD
5 channel: 130 W RMS x 4 + 330 W RMS x 1 @ 14.4 V input - 2 Ohm < 1% THD
6 channel: 140 W RMS x 6 @ 14.4 V input - 2 Ohm < 1% THD
8 channel: 140 W RMS x 8 @ 14.4 V input - 2 Ohm < 1% THD
24-Volt 6 channel: 140 W RMS x 6 @ 28.8 V input - 2 Ohm < 1% THD
Total rated power output (Watts) Monoblock: 1100 W RMS x 1 @ 14.4 V input - 1 Ohm < 1% THD
4 channel: 440 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD
5 channel: 250 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD + 250 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD
6 channel: 280 W RMS x 3 @ 14.4 V input - 4 Ohm Bridged < 1% THD
8 channel: 280 W RMS x 4 @ 14.4 V input - 4 Ohm Bridged < 1% THD
24-Volt 6 channel: 280 W RMS x 3 @ 28.8 V input - 4 Ohm Bridged < 1% THD
Frequency response Monoblock Amplifier: 10 Hz - 320 Hz (-3 dB, dB @ 4 Ohm rated power) - subwoofer only
4/5 channels: 10 Hz - 50 kHz (-3dB, dB @ 4 Ohm rated power)
6/8 channels: 10 Hz - 40 kHz (-3dB, dB @ 4 Ohm rated power)
6/8 channels and 24-Volt 6 channel: 10 Hz - 40 kHz (-3dB, dB @ 4 Ohm rated power)
Input sensitivity 0.3 V - 8 V RMS (user adjustable)
Input impedance Monoblock/5 channel: 4k Ohm nominal
4/6/8 channels and 24-Volt 6 channel: 7k Ohm nominal
High-pass/low-pass full range filter yes (user selectable)
HP variable crossover frequency Monoblock: 10 Hz - 80 Hz (subwoofer)
4/5/6/8 channels and 24-Volt 6 channel: 32 Hz - 320 Hz
LP variable crossover frequency Monoblock: 32 Hz - 320 Hz (subwoofer)
4/5/6/8 channels and 24-Volt 6 channel: 32 Hz - 320 Hz
Bass boost 0 dB - 9 dB, user adjustable (zone 3 only)
Operating voltage Monoblock and 4/5/6/8 channels: 10.8 V - 16 V DC
24-Volt 6 channel: 21.6 V - 32 V DC
Current consumption (StandBy) Monoblock and 4/5/6/8 channels: < 1 mA @ 14.4 V input
24-Volt 6 channel: < 1 mA @ 28.8 V input
Current consumption (Idle) Monoblock and 4/5/6/8 channels: < 2.5 A @ 14.4 V input
24-Volt 6 channel: < 1.25 A @ 28.8 V input
Current consumption (Max) Monoblock: 120 A
4/5 channels: 80 A
6 channel: 75 A
8 channel: 100 A
24-Volt 6 channel: 35 A
Fuse rating Monoblock/6 channel: 3 x 40 A ATC blade-type (SAE J1171 compliant)
4/5 channels: 2 x 40 A ATC blade-type (SAE J1171 compliant)
8 channel: 4 x 40 A ATC blade-type (SAE J1171 compliant)
24-Volt 6 channel: 3 x 20 A ATC blade-type (SAE J1171 compliant)
Operating temperature range 32° to 122° F (0° to 50° C)
