Hidraulinio keltuvo reguliavimo panelė

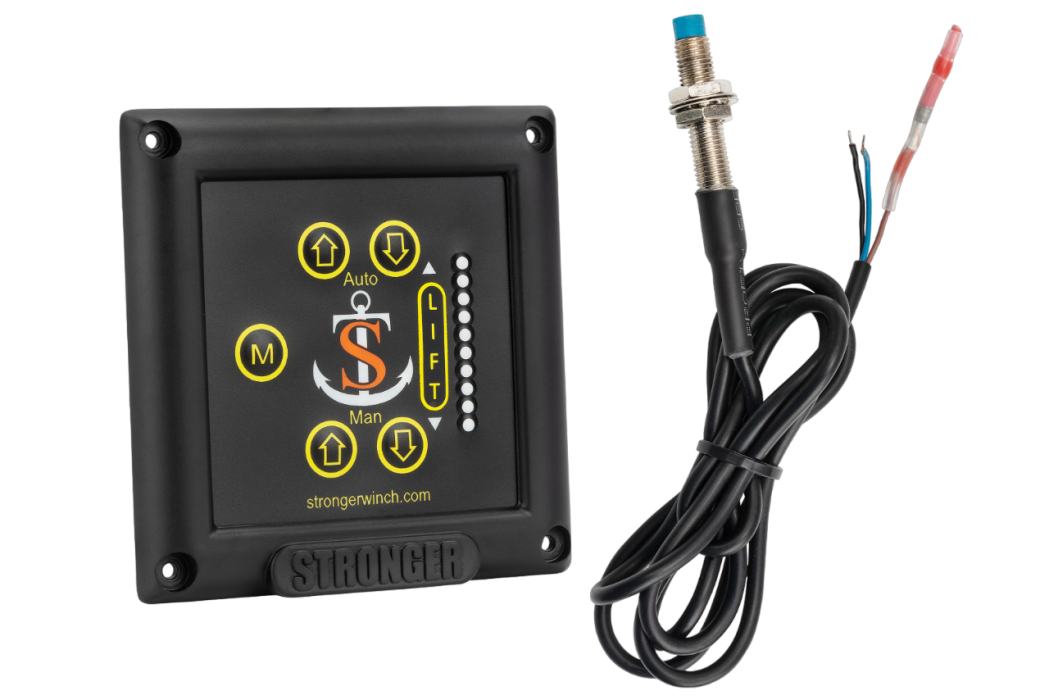

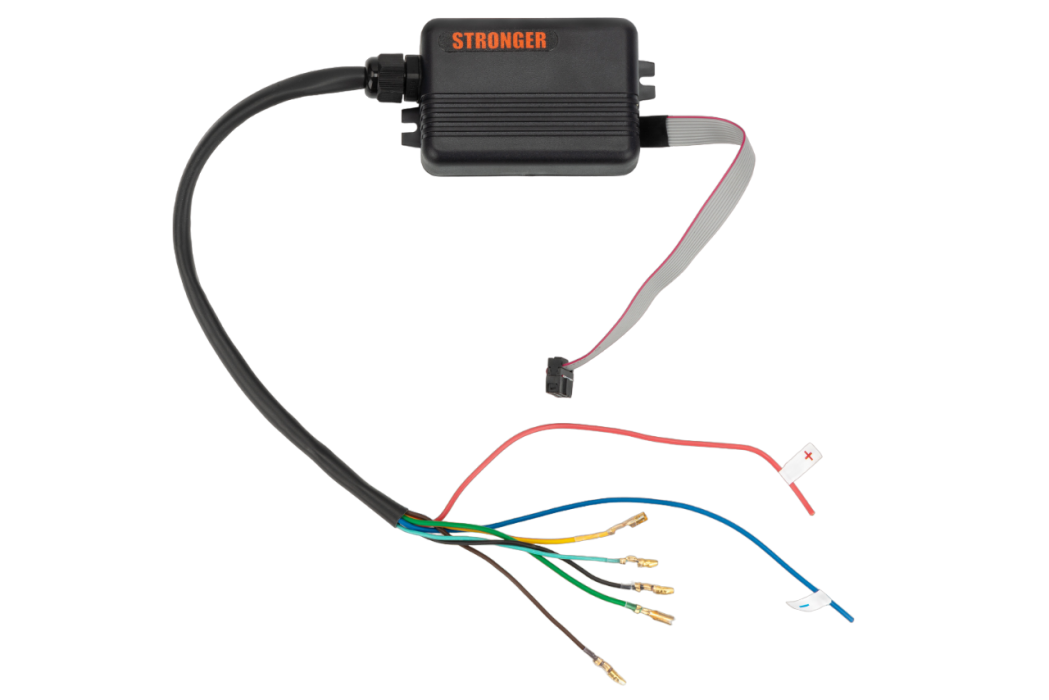

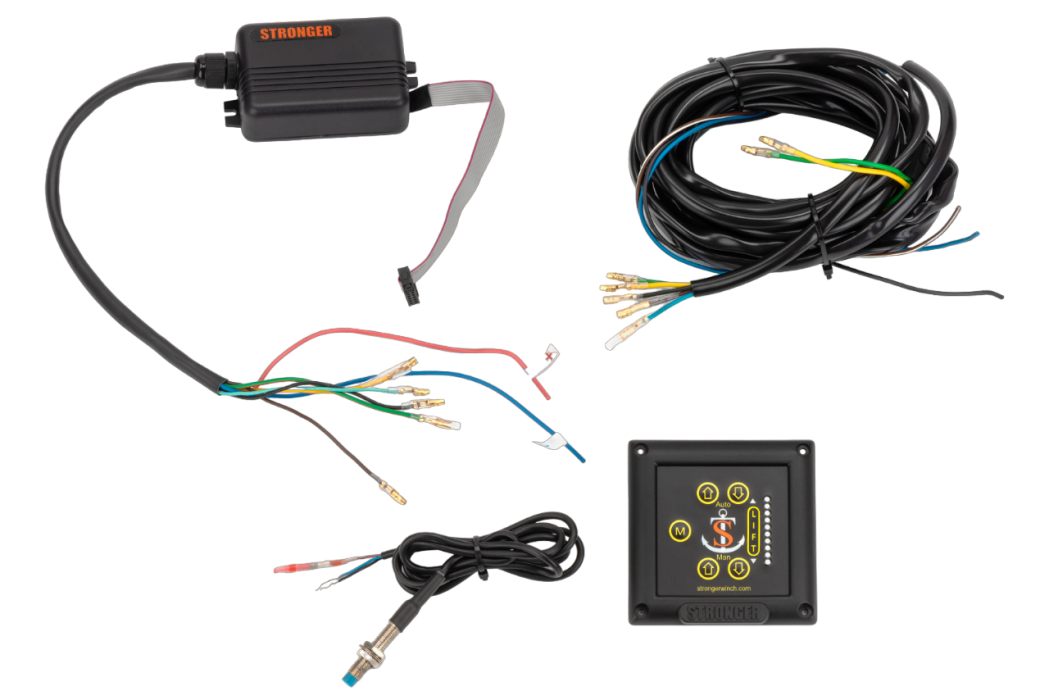

Block and control panel for hydraulic lift for outboard motor from STRONGER. This is a system that allows you to control the elevator with the ability to fully raise and lower it using special buttons. There is also the possibility of step-by-step elevator control. When you press the up or down button, the lifting step will be about 2 cm. And finally, the most important function is the ability to remember your favorite position. So how does it all work?
System tune-up:
At the moment of entering the water and the future start of the boat, you lower the elevator to the lowest position and start the boat. Once your boat is on the planing plane, you can begin adjusting the engine lift in steps. But you are no longer adding speed to your boat.
With each press of the up button, your motor will begin to rise 2 cm. At the moment of raising, you should look at the tachometer of your motor; with each rise, the engine speed will begin to increase, and the speed of the boat will begin to increase.
At some stage of adjustment, after the next stepwise increase in the engine, you will notice that the speed has stopped growing, or there is a drop. This means that you have reached the maximum position of the screw of your motor and in the future to achieve maximum efficiency you need to go back a step.
You press the down button and your motor will go down 1 step. This will be your favorite position in the future. Then you press the “M” button, hold it down for 3 seconds, after which the panel will flash. This will be a signal to you that your favorite position has been saved in the non-volatile memory of the device.
In the future, after the boat reaches the glider, you can immediately press the “M” button and your motor will take the favorite position that you saved earlier.
After you have finished your stay on the water, you need to lower the elevator to its lowest position. Only in this position will you be able to transport your boat to a further mooring location. Any other position of the motor lift is not permitted during transport!
