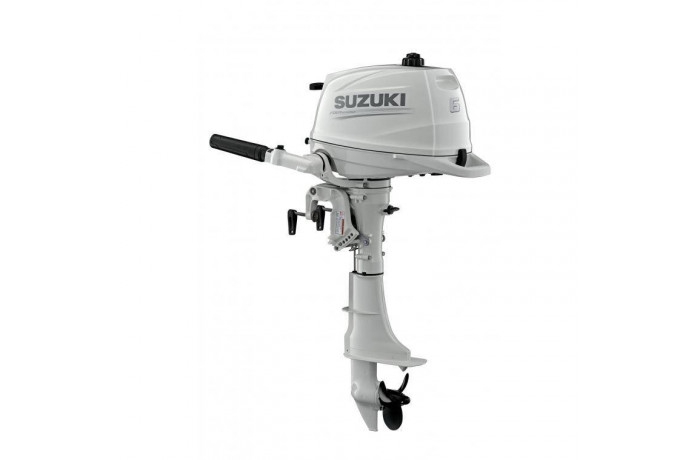

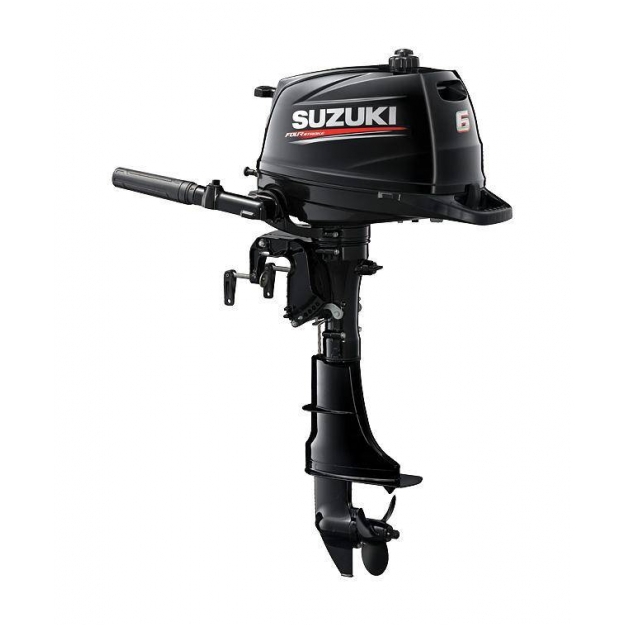

Suzuki DF6AS

Lightweight

In addition to a reincarnated stylish appearance, the newly designed and developed Suzuki DF6A,DF5A and DF4A boast the unrivaled lightweight, 24.0Kg (S-shaft models).
The lighter weight has improved portability as well as operability.

Outstanding Handle Operation

An ease of handling that has enjoyed great popularity. Further improvements to the tiller handle have successfully mitigated vibrations contributing to fatigue and stress when transmitted to the hand during operation. The DF6A, DF5A and DF4A particularly excel at vibration mitigation in the mid-range.

Offset Crankshaft

Positioning the crankshaft slightly off center of the cylinder reduces lateral pressure against the cylinder wall as the piston moves up and down in the cylinder. The result is smoother piston movement, which improves operating efficiency.

Diagram of Offset Crankshaft

Easy After-Storage Start

Because the integral overhead fuel tank and one-way valve allow gravity fuel supply, the engine can be started without opening the engine cover, even after longterm storage.

Diagram of Easy After-Storage Start



Highly Reliable Lubricating System

The forced lubrication system of the DF6A, DF5A and DF4A has an additional oil passage to the upper and lower crankshaft and connecting rod big end. The addition of a first-in-its-class** oil filter greatly increases the reliability of the lubricating system. Furthermore, the new position of the oil window allows for visual confirmation of the actual lubricating condition.

Picture of Highly Reliable Lubricating System
Diagram of Highly Reliable Lubricating System

Three-Way Storage

The new fuel and lubricating systems allow extremely convenient storage of the outboard on any of three sides (port, starboard or front) without worrying about the storage orientation.

Diagram of Three-Way Storage

Improved Portability

The carrying handle integrated into the lower cover has been rounded and made easier to hold. An additional grip at the front of the lower engine cover provides the convenience of carrying the outboard with both hands.

Picture of Improved Portability

New Tilt System

The tilt system of the DF6A, DF5A and DF4A offers different up-and-down paths of the shallow drive arm compared with the previous models. When raised, it can be locked at three positions. When lowered, it can just be smoothly moved to its lowest position without locking.

Diagram of New Tilt System

Suzuki's Anti Corrosion System

Suzuki protects its outboards with an anti-corrosion finish specially developed by Suzuki. Applied directly to the aluminum surface it maximizes the bond between the finish and the surface, increasing the protection and durability of parts that are constantly exposed to saltwater.

Diagram of Suzuki's Anti Corrosion System

Lower Emissions, Efficient Operation

Suzuki's advanced four-stroke technologies deliver highly efficient operation and lower emissions. This allows Suzuki outboards to conform to some of the world's strictest standards*3 including the EURO 1 Emissions Standards (Directive 94/25/EC as amended by Directive 2003/44/EC)*4, and receive a three-star rating from the California Air Resources Board (CARB).

RCD EMISSIONS STANDARDS / ULTRA LOW EMISSION

*3:Emission standards compliancy is region specific.

*4:The EU emissions standards (exhaust gasesand noise levels) set by the European Parliament and Council.



Techninė specifikacija






MODEL DF6A
RECOMMENDED TRANSOM HEIGHT mm S:381
STARTING SYSTEM Manual
WEIGHT kg *5 S:24
ENGINE TYPE OHV
FUEL DELIVERY SYSTEM Carburetor
NO. OF CYLINDERS 1
PISTON DISPLACEMENT cm3 138
BORE ×STROKE mm 60.4 X 48
MAXIMUM OUTPUT kW 4.4
FULL THROTTLE OPERATING RANGE rpm 4,750-5.750
STEERING Tiller
CHOKE Manual
OIL PAN CAPACITY Lit. 0.7
FUEL TANK CAPACITY Lit. Integral 1.0
IGNITION SYSTEM Digital CDI
ALTERNATOR 12V 5A (Option)
ENGINE MOUNTING Bushing Type
TRIM METHOD Manual Trim and Tilt
GEAR RATIO 1.92:1
GEAR SHIFT F-N-R
EXHAUST Above Prop Exhaust
PROPELLER SELECTION (Pitch) *6
All propellers are the 3-blade type
6"-7"
