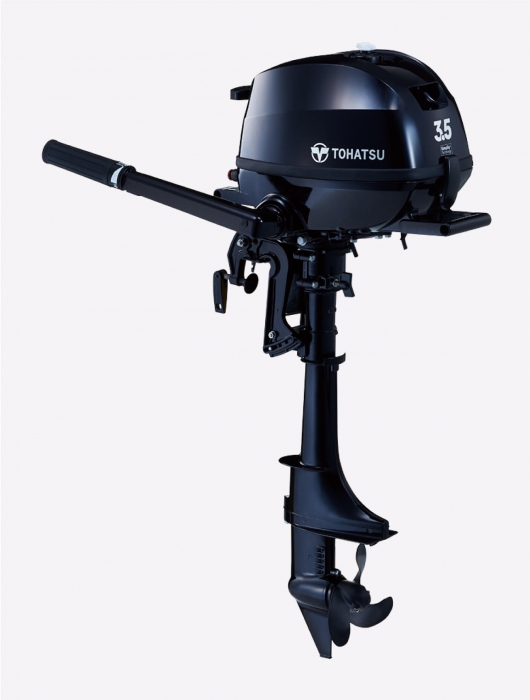

Tohatsu MFS3.5CL

These portable best-sellers have been upgraded with newly designed top and bottom cowl based on the Tohatsu Design Philosophy for Marine Products of Simpliq with ergonomically designed front and back carrying handles. Now you can store your engine on 3 different positions without worrying about oil spillage.

The 3.5 hp is lightweight and has a four point vibration absorption system to minimize vibration. And with sensational fuel economy, this compact little 3.5hp engine has it all… making it one of the best choices available for portable outboard power.

Tohatsu 3.5 hp 4-Stroke Benefits

  • Newly designed top and bottom cowls based on Tohatsu Design Philosophy for Marine Products
  • 3-way storage positions without worrying about oil spill
  • Newly designed front and back carrying handles for easier transportation
  • Water cooled and thermostatically controlled cooling system for consistent engine temperature
  • Digital CD ignition system for easier starting, quicker throttle response and smoother trolling
  • Forward-neutral shifting with 360° steering
  • Easy to check oil level gauge indicator located on the engine's side
  • Light and compact
  • Ultra-low emission, EPA and CARB 3-Star rating approved

FEATURES

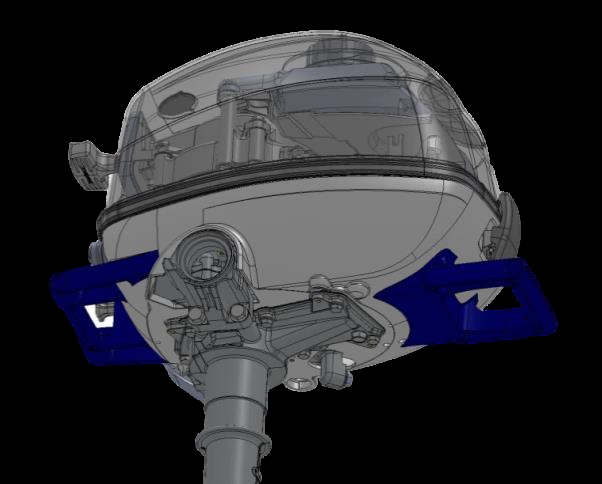

Front & Back Large Carry Handles



Ergonomically designed new Large Front & Back Carrying Handles which allow easier carry and transportation from having one handle positioned slightly below another.

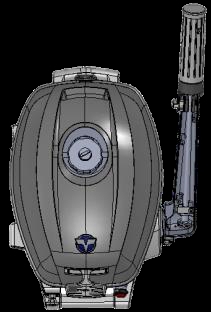

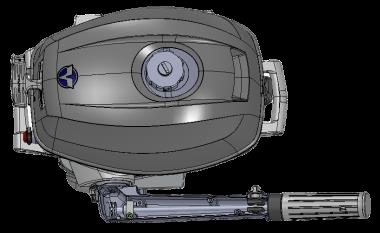

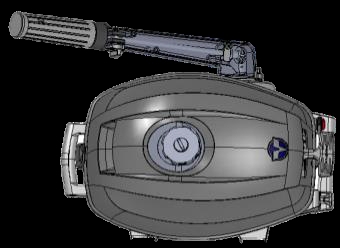

3-Way Storage

3-way storage positions (Port, Front & Starboard side down) without worrying about oil spill. *Please refer to Owner's Manual for storage and transportation.

Offset Engine

This Tohatsu patented powerhead design is tilted 15 degrees to the right inside the lower motor cover to create a compact top cowling design and also help with portability.

Throttle Grip

The twist type throttle control is provided on the steering handle for quick steering as well as one-handed operation to assure your safety.

360° Full Pivot Steering

The outboard can be turned to any direction, up to 360 degrees, for simple steering that is needed for small boats.

Oil Level Sight-Gauge

Conveniently located on the side of the motor, the oil level sight- gauge makes it easy to check the oil level without having to remove the cowling.




Techninė specifikacija


Engine 4 Stroke 1 Cylinder
Output 3.5 hp (2.6 kw)
Displacement 85.5 cc (5.2 cu.in.)
Bore x Stroke 55 x 36 mm (2.17 x 1.42 in)
Starting Manual
Control Type Tiller Handle
Gear Shift Forward - Neutral
Gear Ratio 2.15:1 (13:28)
Propeller Selection Range 4.5" - 7"
Transom Height 15", 20"
Fuel Unleaded Gasoline (87 Octane)
Oil Type NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ)
Oil Capacity 300 mL (10 fl. oz.)
Fuel Tank 1L (0.26 US Gal.) Integral Tank
Weight* 18.4 kg (41 lbs.)
Max. RPM Range 5,000 - 6,000
Digital CD Ignition System Standard
Thermostat Controlled Cooling System Standard
Shallow Water Drive Standard
