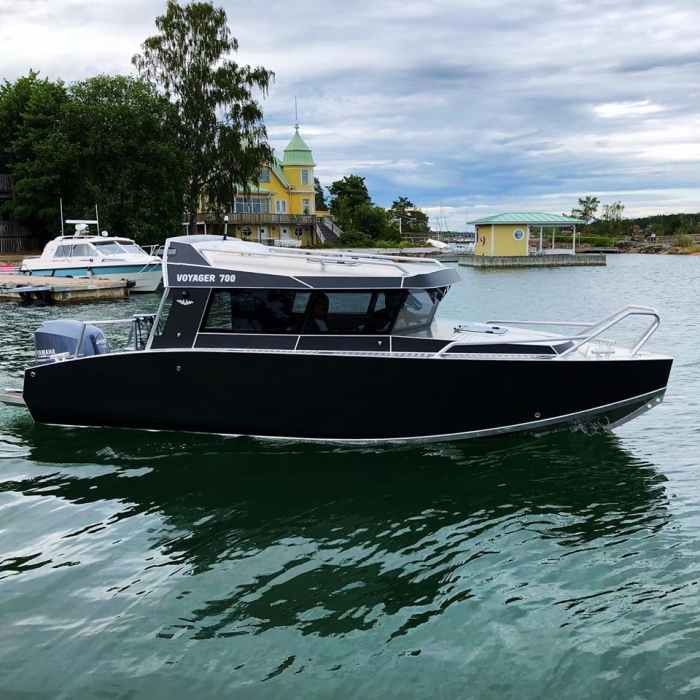

Voyager 700 Cabin

NEW 2021 FACELIFT!

Puikus aliuminis kateris tinkantis aštriom Baltijos jūros bangom ir atšiauriam klimatui.   7,15 metro ilgio ir  2,5 metro pločio. Maksimalus 250ag leistinas variklis.

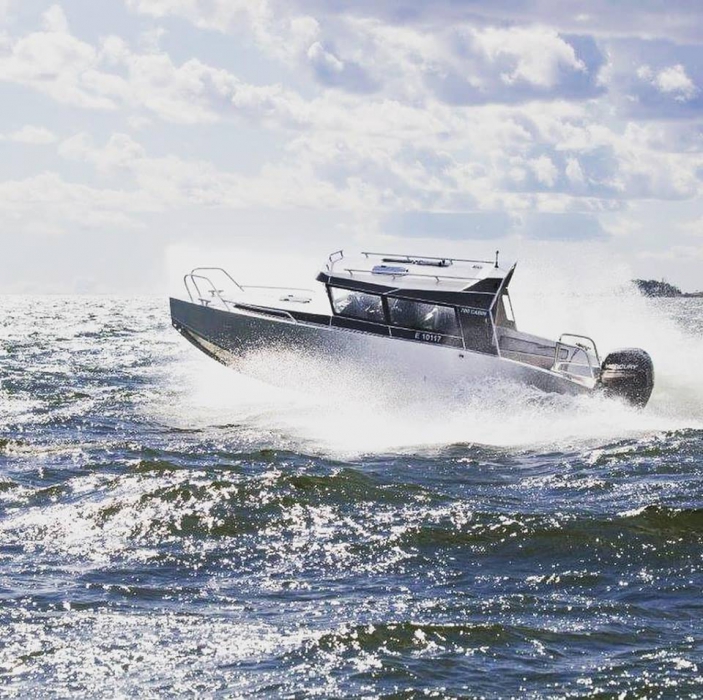

Maksimalus išbandytas greitis 82 km/h  su 225 ag varikliu. Pilnas ilgis laivo 7,15 metrai.

Exterior

  • Aluminium hull 5083 marine alloy
  • Metal thickness on the bottom 5 mm, on the sides 4 mm
  • Power-V-Frame inner structure
  • Double side welded body - DSW
  • Vibration and sound insulation of the hull
  • Powerful stem
  • Bow eye
  • Special "Dragon skin" fender
  • Roof aluminium railings
  • Bow aluminum railings
  • Anchor storage in bow
  • Welded mooring cleats, 4 pcs.
  • Fender Hooks
  • Self-draining aft deck
  • Aft locker-stage on the left side with place for installing a winch
  • Aft locker-stage on the right side with a niche for the battery

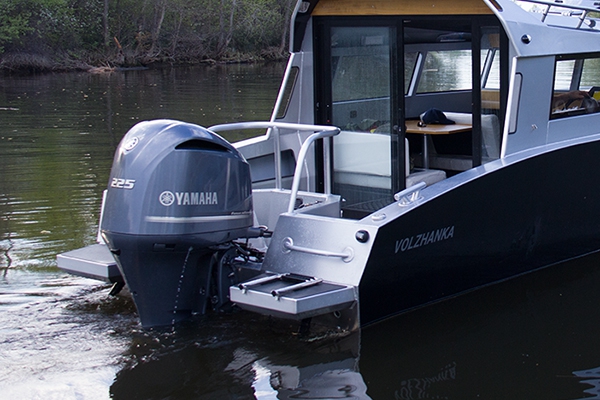

  • Stern oversized platforms
  • Aft stainless ladder stainless under the crinoline
  • Enlarged transom platforms for installing transom plates, sensors, etc.
  • Anodes for hull
  • Decorative pasting of the board (color - black)

Control and engine

  • Hydraulic steering system for one engine

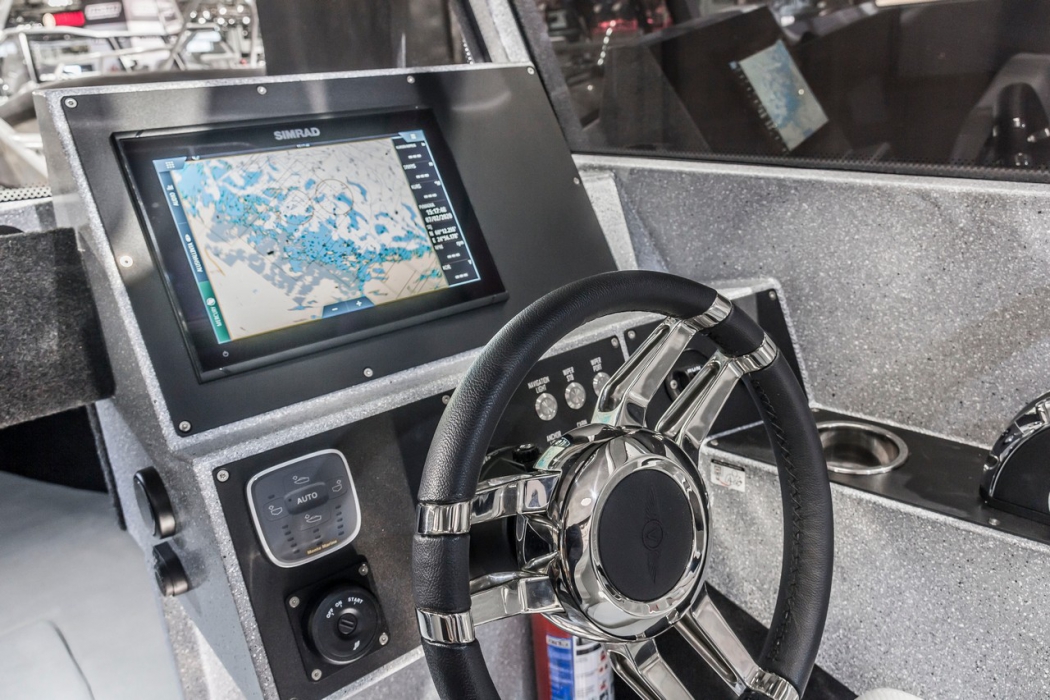

  • Premium steering wheel

Fuel system

  • Integrated fuel tank 240 l for main engine
  • Integrated fuel tank 14 l for autonomous heater
  • Fuel hoses Marine Fuel (Italy)
  • Fuel level sensor KUS
  • Filler neck Osculati (Italy)
  • Fuel vent stainless steel 16 mm Osculati (Italy)
  • Filler neck Osculati (Italy) for autonomous heater
  • Fuel vent stainless steel 16 mm Osculati (Italy) for autonomous heater

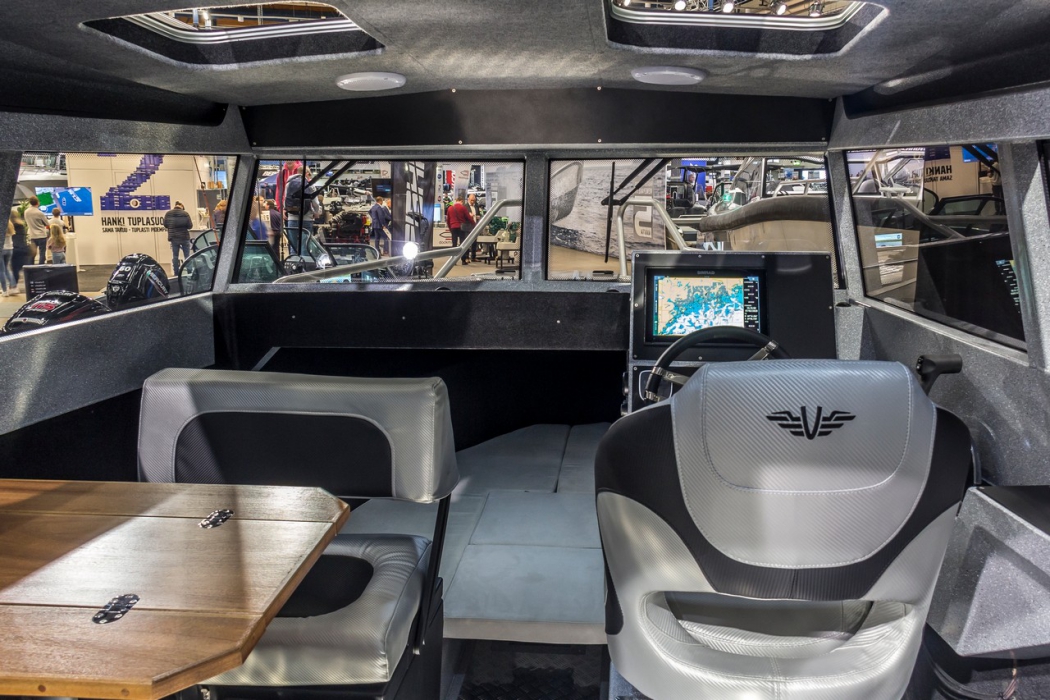

Interior

  • Marine hardware
  • Autonomus heater Teplostar, 4kW, diesel

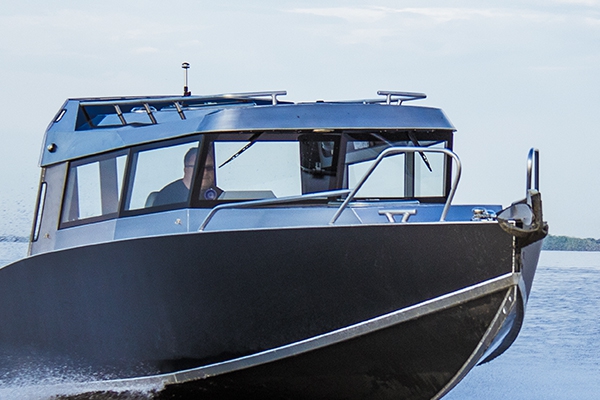

  • Glass windshield with reverse angle
  • Windshield wipers ROCA (Sweden)
  • Tempered side windows

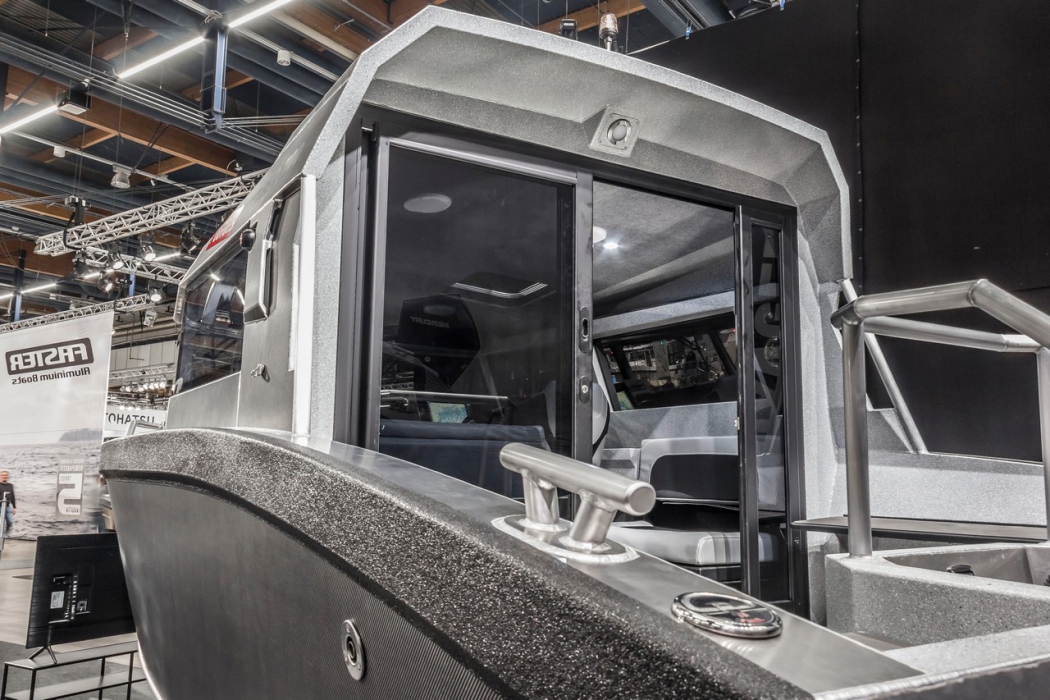

  • Sliding aft glass door

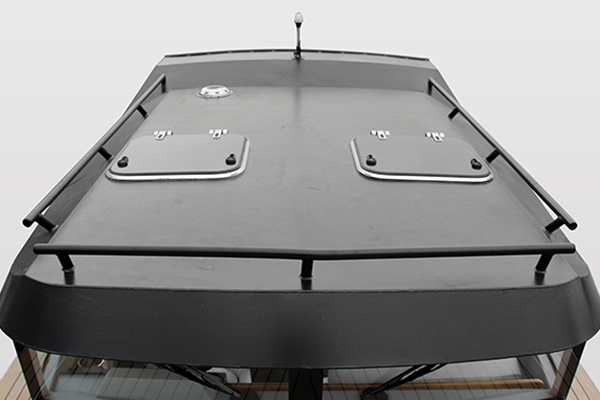

  • Roof hatches 2 pcs.

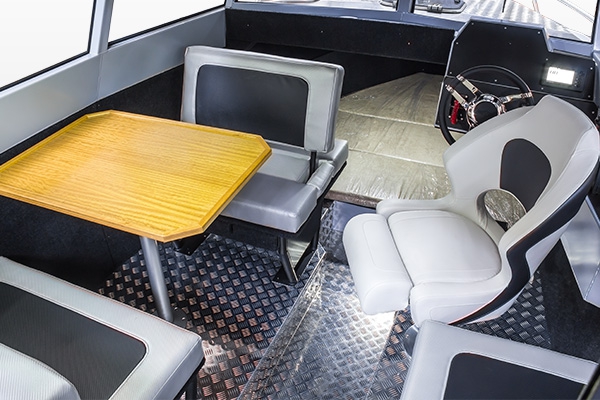

  • Springfield DeLux driver's seat
  • Reinforced driver's seat post with two-way adjustment
  • Wide driver's armrest with cup holder
  • Soft cushion "Carbon"
  • V-Foam soft seat filling
  • Front convertible sofa on the left side V-Swing with a locker
  • Rear stationary sofa with locker on the left side
  • Rear sofa with locker behind the driver's seat on the right side

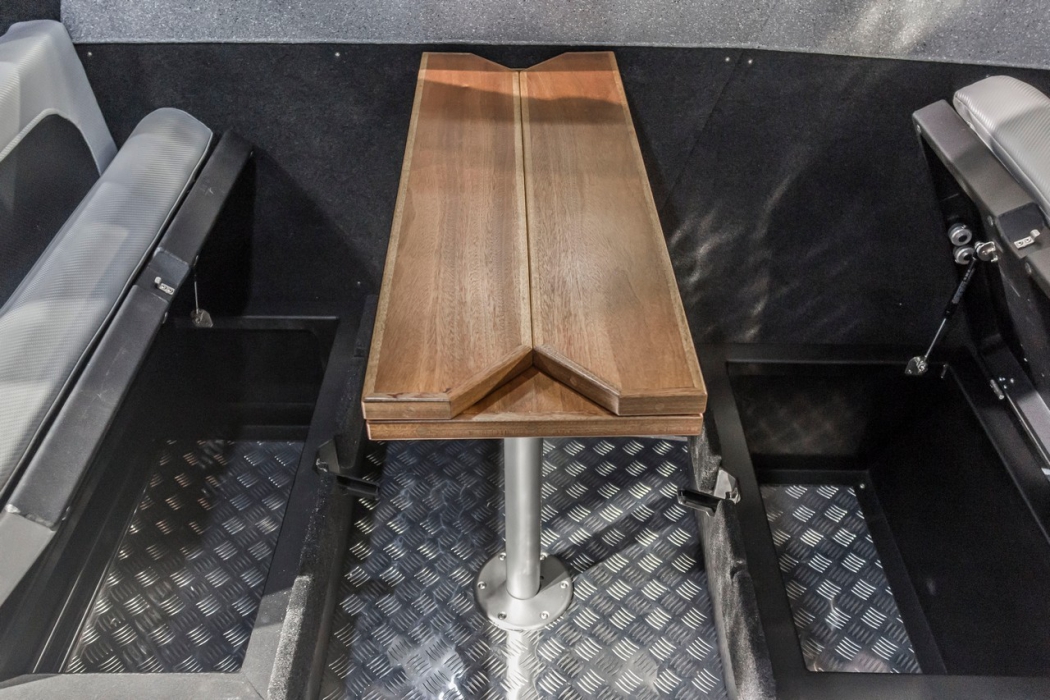

  • Table in the cockpit, removable, transforming into an additional bed
  • Additional hatch in the cabin
  • Berths in the bow cabin
  • Two longitudinal shelves in the cabin
  • Locker under berths
  • Bio toilet niche
  • Side shelves above the windscreen
  • Aluminum linings in the cabin
  • Carpet interior finishing
  • Special scratch-proof paint in the cockpit

Electrical equpment

  • 12V Electrical network
  • Electrical components are factory wired
  • Battery switch
  • Auto bilge pump (electrical)
  • Navigation lights (Port, starboard, stern)
  • Anchor light
  • Marine horn
  • New illuminated stainless steel buttons
  • USB socket
  • Cabin lights
  • Cockpit lights
  • Stern lights


Techninė specifikacija


Aluminum hull, thickness bottom/sides, mm 5/4
Length, m 7,15
Width, m 2,47
Depth amidships, m 1,23
Deadrise on transom, ° 17
Transom height, m 0,635
Max. horsepower 250
Weight, kg 1440
Max. capacity, kg 950
Max. person capacity 7
Integrated fuel tank 240 l
Engine type Outboard
